The Expandable and Accessibile Kiln
Low fire/ Bisque/ Raku to Cone 5 Kiln
Patent Number 13/842,995
Image 1a 8cu ft - Kiln Kit Image 1b Swivel - Accessibility Image 1c Extension 16 cu ft
Image 2
EFFICIENCY - ACCESSIBILITY
Kiln Kits
Swivel Motion with no poles to get in the way which allows for total accessibility. (Image 1b)
Firing Chamber Extension (image 1c) allows for energy
conservation when all of the 2’x2'x4’=16 cu.ft. space isn’t
required. Removing it gives you a 2’x2’x2'=8 cu.ft. space.
Image 3b
Electric Winch (Image 2) or counter weight can be used to lower
and raise the firing chamber.
Guide Rod (image 2) directs the firing chamber to its resting place on the castable ring and disengages to allow for swiveling
motion.
Two Venturi Burners (image 3b) Each producing
75,000 BTU's placed directly under the kiln floor.
Burner Ports for firing chamber

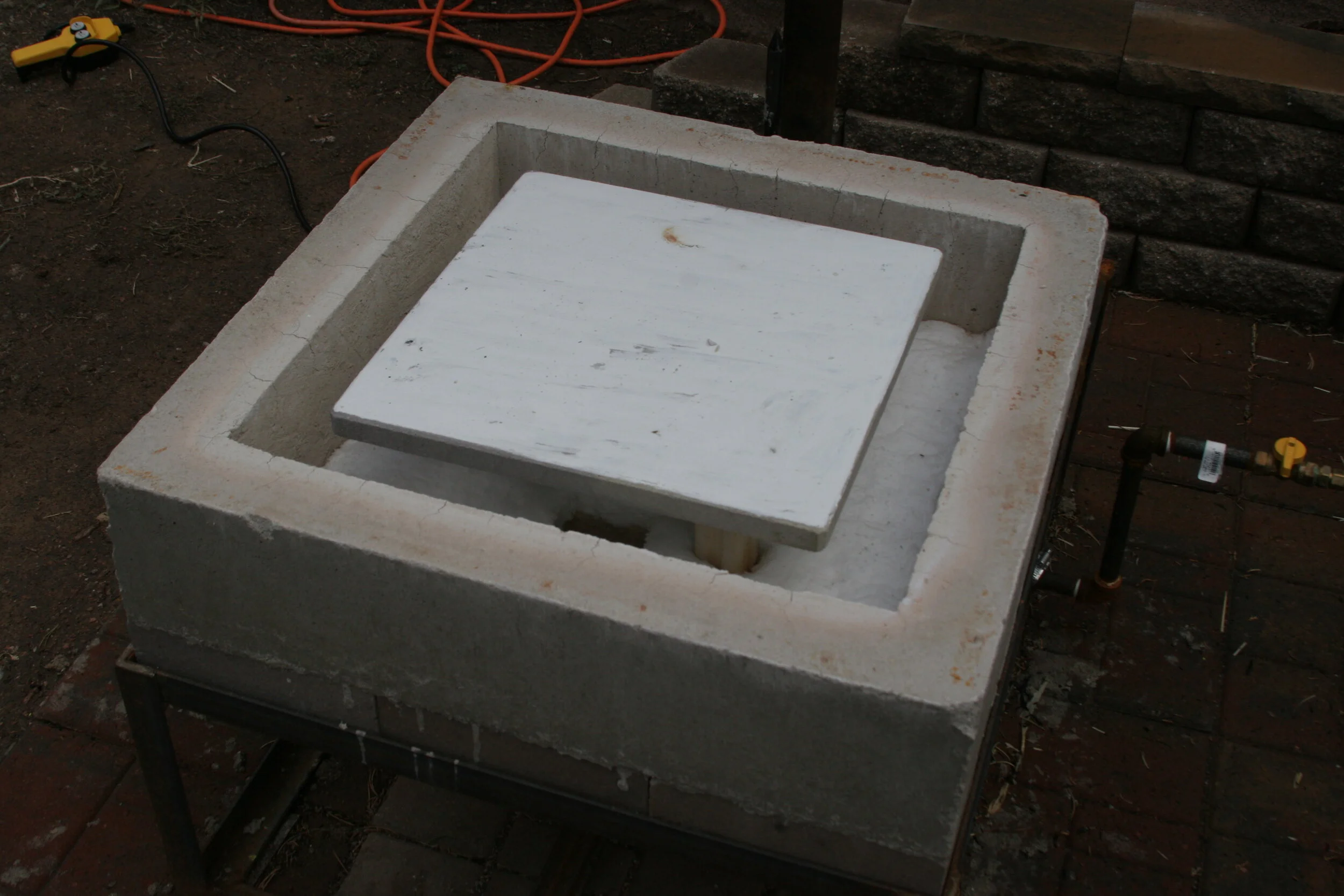

Castable Refractory Ring (image 2b) creating a wall 2" from the
perimeter of the kiln shelf floor which creates a chamber below
the floor of the kiln.
Firing Chamber
Burner ports (image 2b) are directly under the floor shelf. Other
kilns of this type place the burners around the perimeter of the
floor shelves leaving a cold area under the floor of the kiln.
Having the Venturi Burners directly under the floor shelf creates
a hot chamber, which radiates an even heat into firing chamber.
Kiln Kits include:
1) Steel Constructed Frame constructed of 1/8” and 3/16” angle iron and 1/8”
expanded steel
2) 2 Venturi Burners either propane or natural gas
3) Gas Manifold
4) Electric Winch or Instructions for Counter Weight
5) 2400 degree Kaowool, Nichrome Wire, and Ceramic Washers
6) Lift Arm
7) Lift Pole
8) Pulley Cap
9) 3/16 steel cable and attachment devices
10) Guide Pole
11) Hard Brick and castable refractory
Prices:
Kiln Kit
8 cu.ft. kiln 2’x2’x2’ $2980
Extension
8 cu.ft. 2’x2’x2’ $500
Combo
16 cu.ft. 2’x2’x4’ $3480
